Top-entry check valve provided by Nikan moharek asia is forged by hight strength alloy steel,it's used to stop the return flow from high pressure piping,our to-entry check valve are available in size 2 inch and 3 inch,15,000psi working pressure,with fig1502 hammer union end connection. Nikan moharek asia top entry check valve is designed to be compatible with FMC Weco top entry check valve based on technology imported from FMC. To …

مشاهده محصول

Flapper Check Valves – Clapper check valves are designed for well service applications such as fracturing, cementing and acidizing. The flapper check valve is placed in the treating line to allow flow to the well but isolates and back flow to go upstream in the valve. This provides a safety device at various locations in the flow line and assure that pressure and fluid can not backup into the manifold …

مشاهده محصول

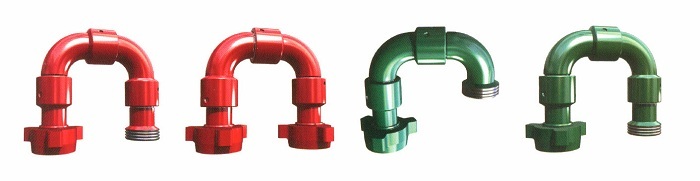

Hose loops - Cementing and Circulating Hose Loop includes long radius and short radius hose loop with size 1",1 1/2",2"3" and 4" working pressure ranging from 6,000psi - 20,000psi.       Hose loops are used as discharge line,fluid delivery line,well testing line,cement slurry line and other delivery lines during high pressure operations, they are composed of swivel joints and straight pipe assy.,which are easy for folding,transportation and storage,featuring flexibility,shock-resistance …

مشاهده محصول

Weco Hammer Union (Wing union) manufactured by Nikan moharek asia is based on the introduced technologies from FMC, the hammer union components are interchangable with FMC WECO on the same size and figure. Our hammer unions (wing unions) are forged by the high quality alloy steel (such as AISI 4130 75K). All processes including forging, machining, and heat treatment are strictly controlled and full trackable in according with API 6A, …

مشاهده محصول

Plug Valve Manifold - Flowback Manifold is designed and manufactured in accordance with API 6A and API 16C standard and improved from SPM and FMC ULT series plug valves. They are easy for operation and low torque and simple to maintain.     Application ● Oil and Gas lines ● Abrasive Drilling Mud ● Wellheads ● Crude Oil and Sour Gas, Mud. ● Manifolds and Pipelines ● Water Flood Lines …

مشاهده محصول

Flanged Plug valves and repair kits provide by Nikan moharek asia to API 6A are available with either full or regular bore with corresponding face to face dimensions. they can be supplied in any of the API material classes suitable for Temperatur Classification P to U as standard or K, L or X to order, with size range from 1" - 3" and pressure ranging from 6,000psi - 20,000psi.     …

مشاهده محصول

Plug valves- Low torque valve and repair kits provide by Nikan moharek asia can be interchanged with the same type of valves of SPM, with size range from 1" - 3" and pressure ranging from 6,000psi - 20,000psi, both union connection and thread connection are available.     Application ● Oil and Gas lines ● Abrasive Drilling Mud ● Wellheads ● Crude Oil and Sour Gas,Mud. ● Manifolds and Pipelines ● …

مشاهده محصول

We can provide various models of integral connectors for high, low pressure and temperature and sour gas (H2S) condition,elbow,tees,Ys,latercals,crosses,fishtail connectors,multidimentional laterals,etc. Integral Forged Tees, Crossovers, Elbows, Wyes, Laterals and Crosses are based on the technology from FMC. All of them are made of high strength alloy steel and heat-treated to enhance load-bearing capacity and lengthen service life.     Available size: 2" to 4" Pressure Rating: 2,000 psi to 15,000 …

مشاهده محصول

Swivel Joint (compatible with FMC Chiksan swivel joint) is a metal pipe adapter installed with roller bearing, we can provide both long radius swivel joints and short radius swivel joints with sizing ranging from 1 - 3 inch and working pressure range from 3,000psi - 20,000psi. Swivel joint is designed for high pressure application, such as cementing and circulting hoses, acidizing, choke and kill lines, test lines, fracturing, etc..   …

مشاهده محصول

Long radius eblow - long sweep elbow provided by Nikan mohark asia is completely forged by alloy steel AISI 4130, without any welding, end connection with Weco union, available from size 2 - 4 inch, pressure rating from 2000 - 20,000 PSI, it's completely interchangeable with FMC Chiksan Weco elbow.       Long radius eblow - long sweep elbow provide by Nikan mohark asia are strictly design and manufactured …

مشاهده محصول
